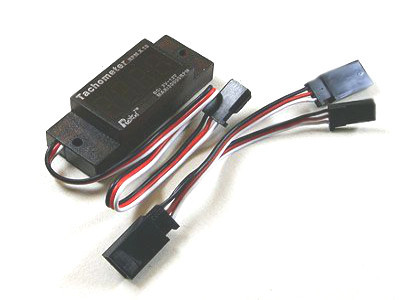

Rcexl Electronic Tachometer

Rcexl Ignition Tachometer for Petrol/Gas Engne V2.0 CDITMT

Product Details

• Use PIC16f628a microcontrollers
• Do not need batteries,Power from the ignition
• Standard FUTABA plug(Black-Negative Red-Positive and White-Signal) -
• Using high-brightness LED digital tube. -Input voltage range:3.0V-12V
• Current consumption 25mA-60mA
• Mini tachometer indicates up to 30000 rpm Actual RPM
• Display Digital *10
• Body Size: 54mm L x 20mm W x 16mm H
• Window Size: 30mm L x 15mm H -Weight:15g (0.5OZ)

Item Packing Instructions:

The Y wiring tandem between in the HALL sensor and the ignition. -The tachometer plug the other end with Y wire.

Connected to ignition power supply and can be displayed Note: That connecting plugs do Reinforcement. To prevent vibration.

The hall sensor & tachometer wire from the Ignition are high-voltage wire, Do not use receiver wires over 30cm, You must connect to the dedicated tachometer signal wire.
